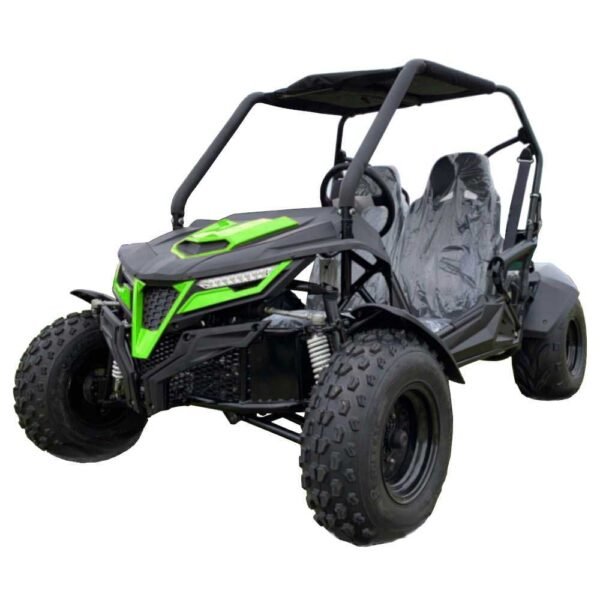

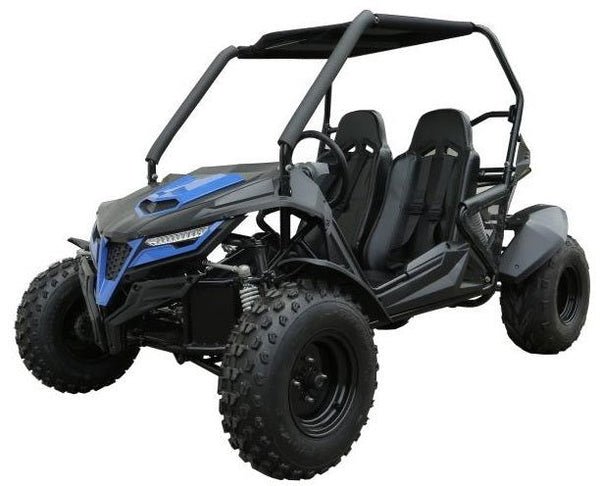

The new UTV/Go-kart hybrid, named the Cheetah, boasts a sleek and powerful design with the drivetrain and suspension of a high-performance go-kart and the versatility of a utility vehicle. Its extended swing arms, double ball joint, and rear suspension with ample ground clearance allow for smooth handling over rough terrain, making it less prone to flipping. Complete with adjustable high back bucket seats, steering wheel, and 3-point retractable seat belts, this vehicle is suitable for all sizes and skill levels. Its list of special features includes an automatic CVT with reverse, hydraulic disk brake, parking brake, fenders, canopy top, and cargo rack, while its LED light package adds a touch of stylishness with its flowing turn signals.

FEATURES:
Reliable GY6 200 EFI Engine
Keyed Electric Start
CVT Automatic Transmission with Reverse
Hydraulic Disc Brakes
Polished Stainless Steel Muffler
Heavy Duty Full Suspension
5-Point Safety Harness
4-Wheel Fenders
Adjustable Tilt Steering Wheel
Canopy Sunshade Top
Utility Rack
Central Rear View Mirror
Hi/Low Beam Headlights
Tow Hitch
SPECIFICATIONS:
Engine type: 200cc, EFI 4-stroke, single cylinder, air cooled
Max HP: 10.2hp/7500rpm
Max torque: 11 lb ft/6000rpm
Bore x stroke: 2.26×2.28 inches
Max speed: 47 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Engine oil: SAE 10/15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 20×7-8 / 22×10-10
Fuel capacity: 2.25 gal
Adjustable Driver Seat: Pedal to Seat Back adjusts from 38″ to 43″
Weight, G.W. / N.W.: 573 / 485 lbs
Max load: 500 lbs
Wheelbase: 59 inches
OA L x W x H: 85×53.1×57.5 inches
Height to seat: 13.8 inches
Min ground clearance: 6.7 inches
