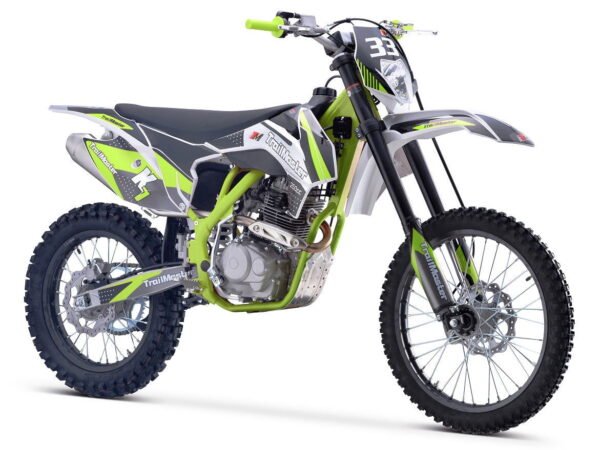

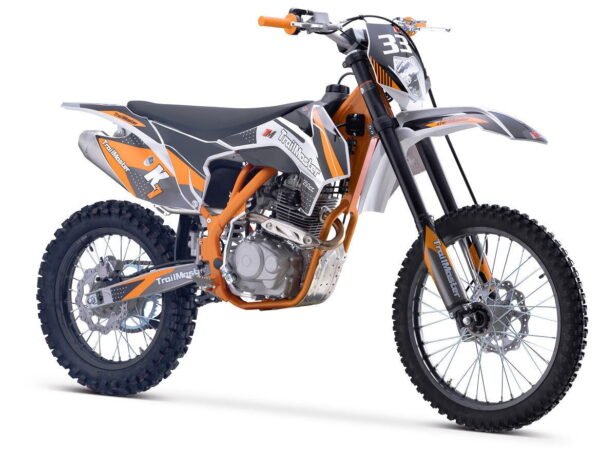

The TM 33‐250 is a great full size dirt bike. It has both a kick start and a new “ELECTRIC START”. It has a high performance 223cc 4 stroke 16hp engine with a top speed of around 55 MPH and a seat height of 37”. It is available in red, green, and orange colors. The TM33 features a 5-speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic Digital CDI ignition makes key and kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 326 pounds, the 223cc engine can propel the motorcycle to speeds of 55 miles per hour.
Specifications
Engine System
Engine Type ZSCB250D‐G, Single Cylinder, 4‐Stroke, Air Cooled
Displacement 223 ml
Max Power 12/7000 kw/r/min, 16 HP
Max Torque 17.5/5500 N.m/r/min
Compression Ratio 9.3~9.9:1
Shift Type Manual Wet Multi‐Plate, 1‐N‐2‐3‐4‐5, 5‐Gears
Bore and Stroke 65.5 x 62.2 mm
Min.Fuel Cons ‐ 354(g/Kw.h)
Start Type Electric & Kick Start
Carburetor PZ28
Ignition Digital CDI
Transmission #520 Chain, FT: 13T/RR: 47T Sprocket
Size Data
Front Suspension Φ51*Φ54‐910mm Inverted Hydraulic Forks, 150mm Travel
Rear Shock 460mm Spring Pre‐load None‐Adjustable Shock
Front Wheel Alum, FT: 1.60 x 21
Rear Wheel Alum, RR: 2.15 x 18
Front Tire 80/100‐21
Rear Tire 110/100‐18
Front Brake Dual Piston Caliper, 240mm Disc
Rear Brake Single Piston Caliper, 240mm Disc
Frame/Suspension/Brake System
Frame Lightweight ,Steel Tube Frame
Swing‐Arm Tube High Strength Steel Swingarm; L=560mm
Handle Bar Tapered Aluminum #6061
Size 86.6″X33.9″49.2″/2200x860x1250mm
Packing Size 67.5″X18″X34″/1715x450x860mm
Wheel Base 59″/1500 mm
Seat Height 37″/940 mm
Ground Clearance 11.8″/300 mm
Fuel Capacity 6.5 L / 1.72 Gal.
N.W 234lbs/117KG G.W 326lbs/148KG
Download Product Brochure

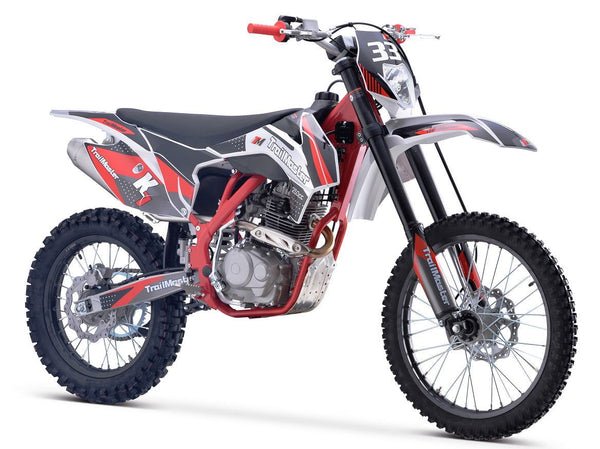

TrailMaster TM33 250 Dirt Bike, 5-Speed Manual, Dual Disc Brakes (21/18) – Red
