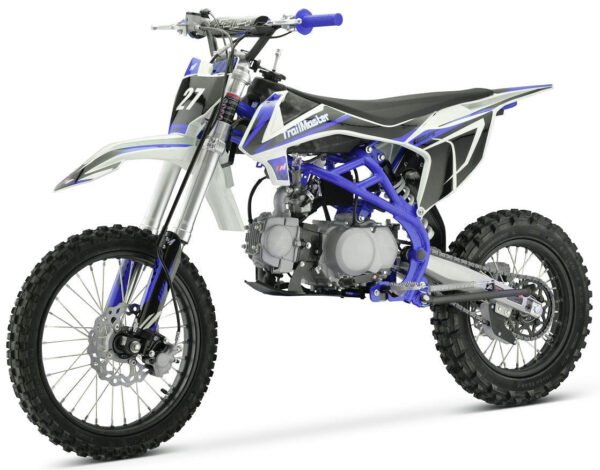

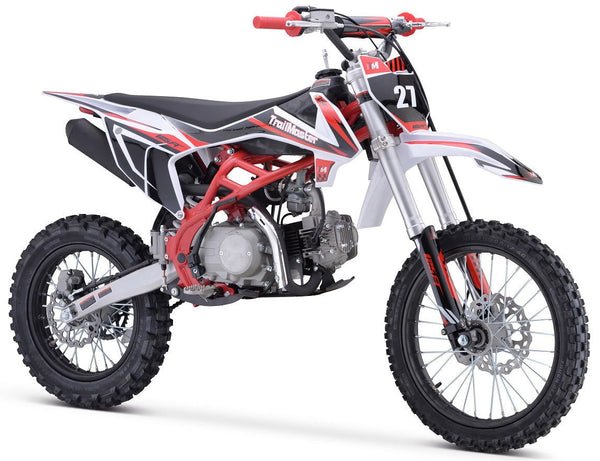

The TM 27‐125 has a LARGER FRAME and comes with a High-performance 125cc 4-stroke 8.3hp gas engine with kick-start and a top speed of around 55 MPH and a seat height of 33.5”. It is available in red, blue, green, and orange colors.
The TM27 features a 4-speed manual transmission with front and rear disc brakes, inverted front shock, and a larger (70” Long) heavy duty frame
Large 17″ Front Wheel and 14″ Rear Wheel, and the bikes’ full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 172 pounds, the 125cc engine can propel the motorcycle to speeds of 55 miles per hour.
Specifications
Engine System
Engine Type: ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
Displacement: 124 cc
Max Power: 8.3hp
Max Torque: 6.64 lbf.ft
Compression Ratio: 9.6:1
Shift Type: N‐1‐2‐3‐4, Four‐Gear Manual Shift
Start Type: Kick Start
Ignition: CDI
Min. Fuel Consumption: ≤367g/kw.h
Max Range: ≤10.5mile
Engine Oil: 5W-30
Transmission: Chain Drive; #428, 14/41T
Size Data
Overall Size (L x W x H): 71.3″X28.9″X43.3″
Wheelbase: 49.8″
Seat Height: 33.5″
Ground Clearance: 13″ Fuel Capacity: 1.2 Gal/4.5 L
Tires: FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
Wheels: Steel 1.6 x 17″ / 1.85 x 14″ Rims, Cast Hubs
Frame/Suspension/Brake System
Frame: Twin Girders Steel Tube
Front Fork Inverted 45*48‐735mm Forks, Non‐Adjustable
Rear Shock: ￠10*￠11*310mm ,Spring Per‐load
Swing‐Arm: Steel Tube 14inch
Handlebar: Steel Crossbar ,L=720mm; Dia=22mm
Front Brake: Hydraulic Single Piston Caliper, 210mm Disc
Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
Exhaust Steel Pipe with catalyst converter (EPA Standard)
Packing Size: (inch) 62.6×14.8×29.9”
N.W: 143.3 LBS
G.W: 172 LBS
Download Product Brochure
