The TM 23‐125 is a great Junior size dirt bike that has both Electric and Kick Start. It has a High-performance 125cc 4 stroke 8.3hp engine and a top speed of around 45mph, a seat height of 29”, front and rear Disc Brakes, and a heavy-duty frame built for durability!
The TM23 features a 4-speed Automatic (Shifting, with No clutch lever) transmission so young riders can focus on riding and shifting without manually operating a clutch.
The bikes’ full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 161 pounds, the 125cc engine can propel the motorcycle to speeds of 45 miles per hour.
Add a Helmet. Sorry, at this price, the free helmet is not available for this model.
Specifications
Engine System
Engine Type: ZM125cc, Gas, Single Cylinder, 4‐Stroke, Air Cooled
Displacement 124 ml
Max Power 8.3 hp
Max Torque 9.0(1±10%）/5000（1±5%）m/r/min
Compression Ratio 9.6:1
Shift Type N‐1‐2‐3‐4, Four‐Gears, Automatic Clutch
Start Type: Electric & Kick Start
Ignition CDI
Fuel Consumption: ≤367g/kw.h
Max Range: ≤10.5mile
Engine Oil: 5W-30
Transmission: Chain Drive; #428, 14/41T
Size Data
Overall Size (L x W x H): 60.24″X28.74″X39.76″
Wheelbase 41.54″
Seat Height 29.13″
Ground Clearance 10.63″
Fuel Capacity 3.5 L/0.92 Gal.
Wheels Steel 1.6 x 14″ / 1.85 x 12″ Rims, Cast Hubs
Tires FT: 60/100‐14 ‐ RR: 80/100‐12
Frame/Suspension/Brake System
Frame: Cradle Steel Tube Frame
Front Fork Telescopic ￠33*650mm Forks, Non‐Adjustable
Rear Shock ￠10*270mm, Non‐Adjustable
Swing‐Arm Steel Tube 12 inch
Handlebar Aluminum Crossbar, L=28.35″; Dia=0.87″
Front Brake Hydraulic Single Piston Caliper, 220mm Disc
Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
Exhaust Steel Pipe with catalyst converter (EPA Standard)
Packing Size 54.5″X14.8″X30″
N.W/LBS 134.5 LBS
G.W/LBS 161 LBS
Download Product Brochure

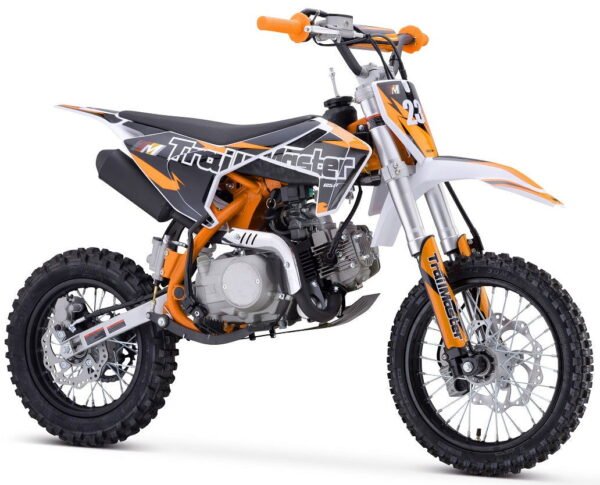

TrailMaster TM23 125cc Dirt Bike, 4-Speed Auto, Electric Start (14/12), Ages 12 and up – Red
$1,149.44
The TM 23‐125 is a great Junior size dirt bike that has both Electric and Kick Start. It has a High-performance 125cc 4 stroke 8.3hp engine and a top speed of around 45mph, a seat height of 29”, front and rear Disc Brakes, and a heavy-duty frame built for durability!
The TM23 features a 4-speed Automatic (Shifting, with No clutch lever) transmission so young riders can focus on riding and shifting without manually operating a clutch.
The bikes’ full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 161 pounds, the 125cc engine can propel the motorcycle to speeds of 45 miles per hour.
Add a Helmet. Sorry, at this price, the free helmet is not available for this model.
Specifications
Engine System
Engine Type: ZM125cc, Gas, Single Cylinder, 4‐Stroke, Air Cooled
Displacement 124 ml
Max Power 8.3 hp
Max Torque 9.0(1±10%）/5000（1±5%）m/r/min
Compression Ratio 9.6:1
Shift Type N‐1‐2‐3‐4, Four‐Gears, Automatic Clutch
Start Type: Electric & Kick Start
Ignition CDI
Fuel Consumption: ≤367g/kw.h
Max Range: ≤10.5mile
Engine Oil: 5W-30
Transmission: Chain Drive; #428, 14/41T
Size Data
Overall Size (L x W x H): 60.24″X28.74″X39.76″
Wheelbase 41.54″
Seat Height 29.13″
Ground Clearance 10.63″
Fuel Capacity 3.5 L/0.92 Gal.
Wheels Steel 1.6 x 14″ / 1.85 x 12″ Rims, Cast Hubs
Tires FT: 60/100‐14 ‐ RR: 80/100‐12
Frame/Suspension/Brake System
Frame: Cradle Steel Tube Frame
Front Fork Telescopic ￠33*650mm Forks, Non‐Adjustable
Rear Shock ￠10*270mm, Non‐Adjustable
Swing‐Arm Steel Tube 12 inch
Handlebar Aluminum Crossbar, L=28.35″; Dia=0.87″
Front Brake Hydraulic Single Piston Caliper, 220mm Disc
Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
Exhaust Steel Pipe with catalyst converter (EPA Standard)
Packing Size 54.5″X14.8″X30″
N.W/LBS 134.5 LBS
G.W/LBS 161 LBS
Download Product Brochure
