Great for Ages 8-12

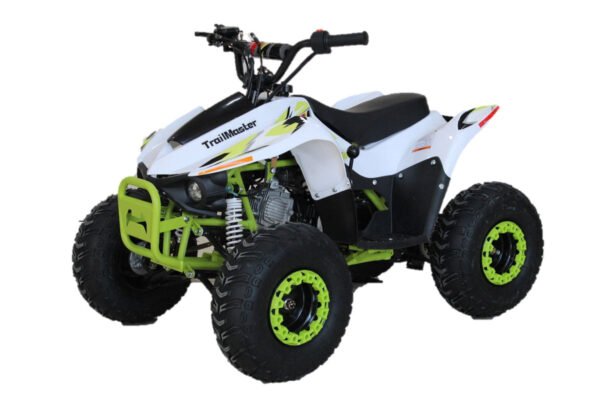

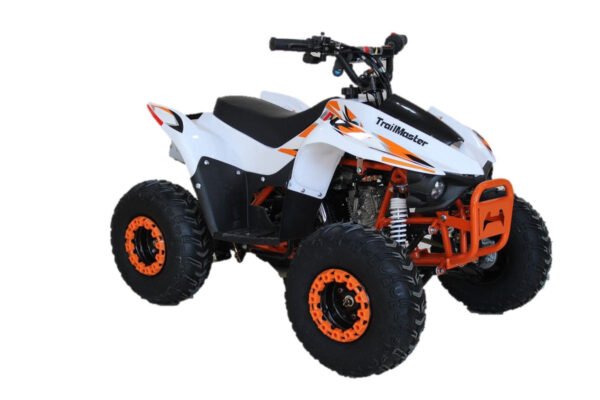

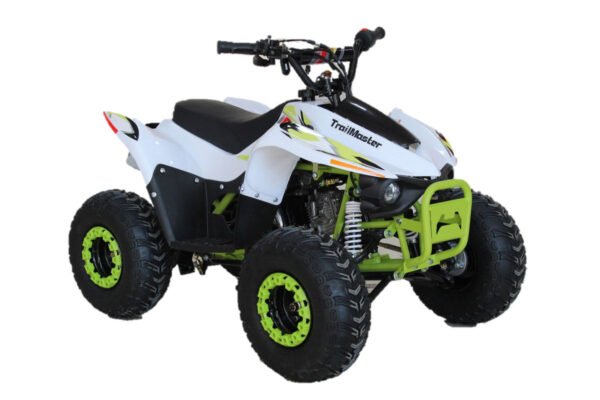

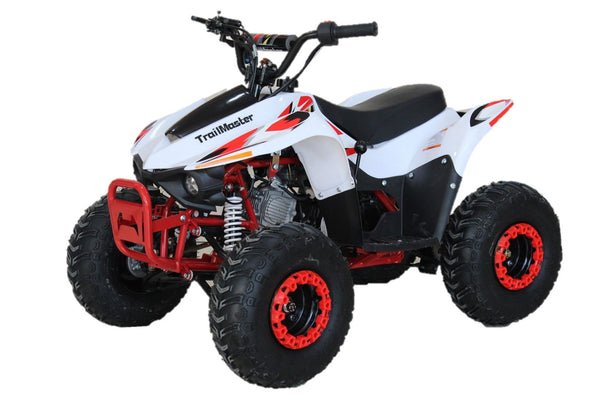

The TrailMaster Mini Sport ATV N110 is a great choice for young adventurers, ages 8-12. It has a 110cc, 4-stroke, 1-cylinder, air cooled engine with 1 forward gear with reverse and a top speed of 25mph.
With a max loading of 110lbs, 2.56″ ground clearance, and 16″ tires, it provides reliable performance for outdoor exploration.
Specifications
Engine: 110cc,4-stroke,1-cylinder, air cooled
Gears: 1 forward with reverse
Compression: 9.1:1
Ignition: CDI
Brake(F/R): DRUM/DISC
Max Power: (KW/R/RIM) 5.0/8000
Max Torque: (N.m/r/min) 7.2/5000
Max Loading: 110lbs
Transmission: 0.4063（13/32）
Fuel Tank Capacity: 1.5L
“Ground Clearance: 2.56″/65mm
L*W*H: 55.5″*29.1″*34.6″/1410*740*880mm
Seat Height: 27.17″/690mm
Axle to Axle distance: 33.86″/860mm
Front Tire Width: 29.1/740mm
Rear Tire Width: 28″/710mm
Front Tire Size: 16*8-7
Rear Tire Size: 16*8-7
Height of Handlebar: 35.4″/900mm
Height of Rear rack: 26.4″/670mm
N.W./G.W.: 168lbs/203 lbs(76/92KGS)
Parts Manual
Brochure
TrailMaster Mini Sport N110 ATV, Automatic with Reverse, 7 inch Wheels, Ages 8 and up – Red
$1,095.22
Great for Ages 8-12
The TrailMaster Mini Sport ATV N110 is a great choice for young adventurers, ages 8-12. It has a 110cc, 4-stroke, 1-cylinder, air cooled engine with 1 forward gear with reverse and a top speed of 25mph.
With a max loading of 110lbs, 2.56″ ground clearance, and 16″ tires, it provides reliable performance for outdoor exploration.
Specifications
Engine: 110cc,4-stroke,1-cylinder, air cooled
Gears: 1 forward with reverse
Compression: 9.1:1
Ignition: CDI
Brake(F/R): DRUM/DISC
Max Power: (KW/R/RIM) 5.0/8000
Max Torque: (N.m/r/min) 7.2/5000
Max Loading: 110lbs
Transmission: 0.4063（13/32）
Fuel Tank Capacity: 1.5L
“Ground Clearance: 2.56″/65mm
L*W*H: 55.5″*29.1″*34.6″/1410*740*880mm
Seat Height: 27.17″/690mm
Axle to Axle distance: 33.86″/860mm
Front Tire Width: 29.1/740mm
Rear Tire Width: 28″/710mm
Front Tire Size: 16*8-7
Rear Tire Size: 16*8-7
Height of Handlebar: 35.4″/900mm
Height of Rear rack: 26.4″/670mm
N.W./G.W.: 168lbs/203 lbs(76/92KGS)
Parts Manual
Brochure
