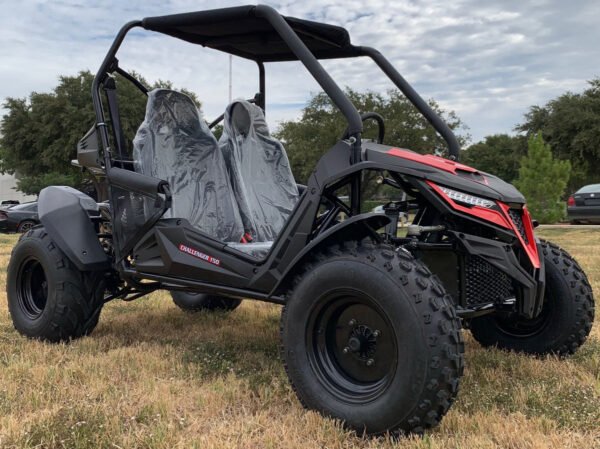

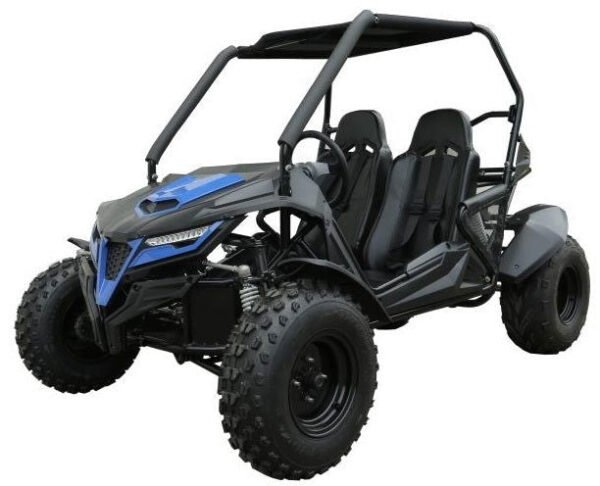

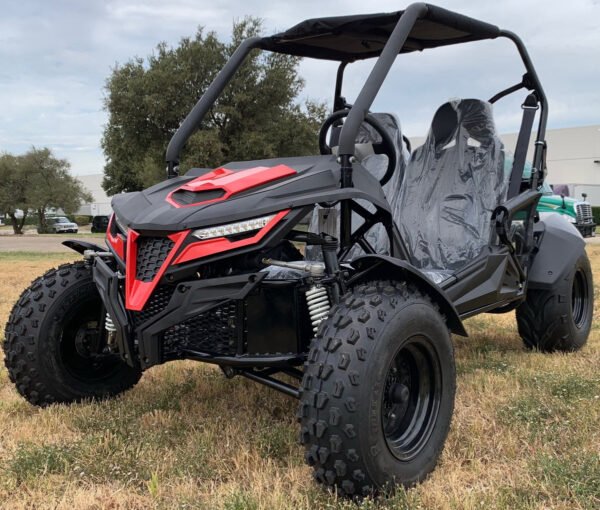

Adult Size, 200cc, Electric Start, Full Suspension, CVT Automatic with Reverse, Live Axle, Dual Wheel Drive, Dual Adjustable Seats, Disc Brakes, Fenders, Rack, Canopy Top, Lights, Tow Hitch. Add a Windshield and Top Lights.
FEATURES:
Reliable GY6 200 Engine
Keyed Electric Start
CVT Automatic Transmission with Reverse
Hydraulic Disc Brakes
Polished Stainless Steel Muffler
Heavy Duty Full Suspension
5-Point Safety Harness
4-Wheel Fenders
Adjustable Tilt Steering Wheel
Canopy Sunshade Top
Utility Rack
Central Rear View Mirror
Hi/Low Beam Headlights
Tow Hitch
SPECIFICATIONS:
Engine type: 200cc, 4-stroke, single cylinder, air cooled
Max HP: 10.8hp/7500rpm
Max torque: 12 lb ft/6000rpm
Bore x stroke: 2.26×2.28 inches
Max speed: 43.5 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 10/15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Double A-arm / swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 20×7-8 / 22×10-10
Fuel capacity: 2.25 gal
Adjustable Driver Seat: Pedal to Seat Back adjusts from 38″ to 43″
Weight, G.W. / N.W.: 573 / 485 lbs
Max load: 500 lbs
Wheelbase: 59 inches
OA L x W x H: 85×53.1×57.5 inches
Height to seat: 13.8 inches
Min ground clearance: 6.7 inches
