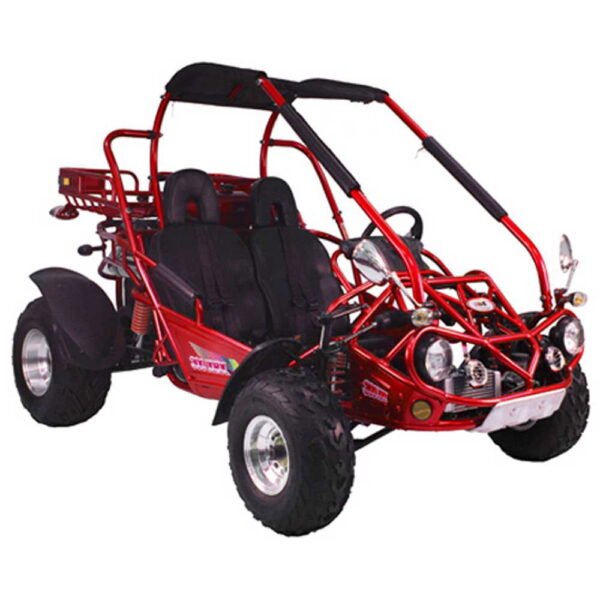

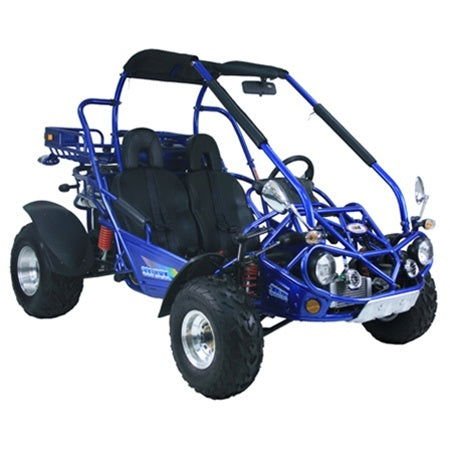

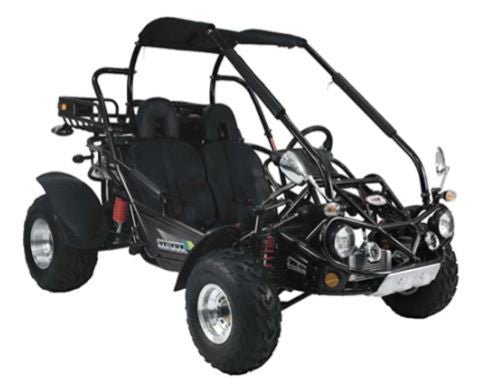

FUEL INJECTEDThe TrailMaster 300 XRX Buggy comes standard with rack and pinion steering, all wheel disc brakes, adjustable leather racing seats, a very aggressive dual A-arm suspension, quick Release seat belts, a liquid-cooled 4-stroke Engine and an automatic transmission with reverseFULLY LOADED, SHAFT DRIVE 4-Wheel Independent Suspension, Leather Seats, Alloy Wheels, Turn Signals, 300cc Engine, Automatic Transmission with Reverse, Rack and Pinion Steering, Disc Brakes, Adjustable Racing Seats, Digital Speedometer, Mirrors
FEATURES:
300cc Liquid Cooled, 4-stroke Engine
Automatic CVT Transmission with Reverse
SHAFT DRIVE
4-Wheel Independent Suspension
Adjustable Leather Seats
Ignition: CDI
Max Speed: 50mph
Seat Harness: 4-point
Steering: Rack & Pinion
Polished Aluminum Wheels
Front Suspension: Dual A-Arm
Rear Suspension: Swing-Arm
Brakes: 4-wheel Hydraulic Disc
Wheels: Polished Steel
Digital Speedometer
4 Fenders
Turn Signals
Dual Aluminum Sideview Mirrors
Central Rearview Mirror
Horn
Cargo Rack
Trailer Hitch
SPECIFICATIONS:
Engine type: 4-stroke, single cylinder, Liquid-cooled
Displacement: 300ccMax
HP: 17.4hp/6500rpmMax
Torque: 16 lb ft/5000rpm
Bore x stroke: 2.85 x 2.63 inches
Max speed: 50mph
Ignition: C.D.I Electric Start
Battery: 12V 10Ah
Automatic CVT Transmission with reverse
Final Drive: Chain + Shaft / Dual wheel drive
4-wheel Independent Suspension
Suspension F / R: Double A-arm / Independent Swing-arm
Brakes, F / R: Hydraulic Disc
Tires, F / R: 20×7-8 / 22×10-10
Fuel Capacity: 2.25 gal
Weight: 617 lbs
Max load: 500 lbs
Wheelbase: 66.1 inches
L x W x H 90.5 x 53.1 x 57.1 inches
Ground Clearance: 10.5 inches
