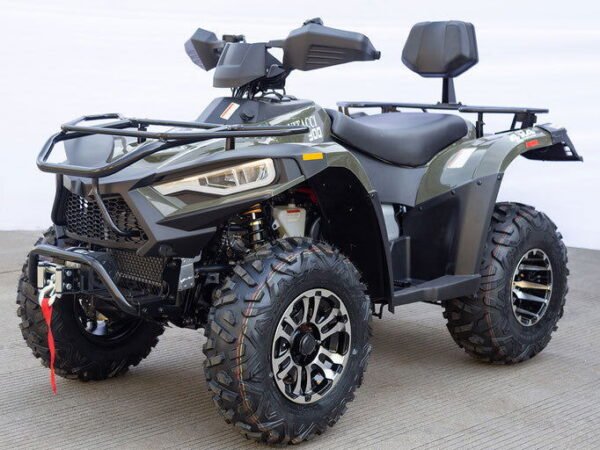

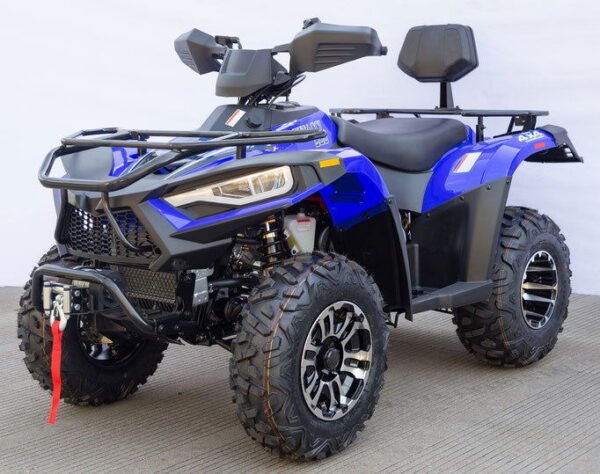

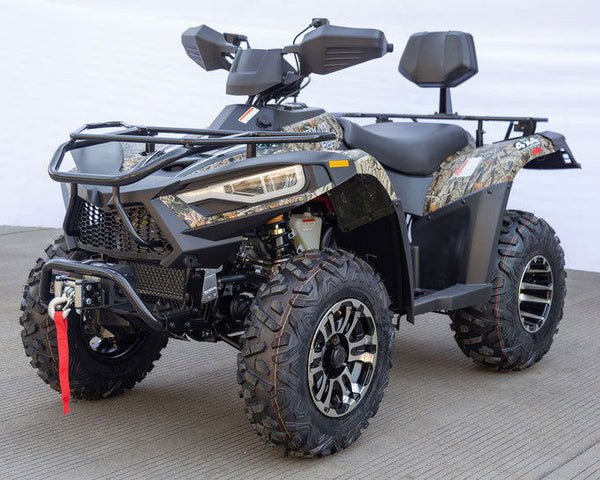

The Terminator 300cc Utility 4×4 ATV is a powerful and versatile full-size quad. Its heavy-duty, water-cooled 257cc engine enables it to easily handle any task on the farm or around the house. Equipped with a front winch and rear hitch combo, the Terminator is prepared for any job. Its massive 24-inch tires provide exceptional traction and control on even the most rugged terrain, while the two-sided hydraulic disc brakes deliver top-notch stopping power. Additional features include a Front Winch, Rear Hitch, Halogen Lights, Low / High Gear, and Chrome Rims. With an independent McPherson strut suspension in the front and socket-centering suspension in the rear, this ATV glides effortlessly over bumps and obstacles on the trails. It also boasts an electric starter, a 3.8-gallon fuel tank, and a full set of lights and signals, making it a comfortable and reliable choice for any rider.
Specifications
Overall Vehicle Size (L x W x H)
83x46x 50 in
Ground Clearance (inch)
 7.2 in
Wheelbase (inch)
51 in
Weight with full equipment
618 lbs.
Front / Rear Brakes
Two sides hydraulic disc
Parking Brake
Front / Rear hand brake, Foot brake
Front Tires
AT24X8-12
Rear Tires
AT24X11-10
Front Suspension
McPherson independent suspension
Rear Suspension
Socket centering structure
Fuel Capacity
3.8 gallons
Engine specification
Engine model
LH173MN
Engine Type
Carburetor, 4 Stroke, Single Cylinder, SOHC, Water Cooling
Bore & stroke
2.85*2.63 in
Volumetric Compression Ratio
10.3:1
Displacement
257cc
Drive System Type
2WD or 4WD
Ignition type
T.C.I
Start type
Electric
Maximum  power (Kw /r/min)
22 HP @ 6500 RPM
Maximum Torque (Nm /r/min)
14.8 lb-ft @ 5500 RPM
Recommended Ages: 16 and up
